Assignment 3 concept of theater design (week 1)



There aspects that inspired by thermal bath.

The unique grap between each roof and the unique light effect it created.

The combination of landscape and building.

The coherence line element.



Another inspiration was came from the theater in Chinese, the stackable roof create an interestion negative space.

Basic concept drawing  of roof.

Concept plan of theater, the red parts of the plan show 2 theaters, blue area were the stuff rooms and changing room of actors. the gray parts show the commerial area such as the art shop and restaurant. At least, the green part was the open space.

The sketch model of the theater concept. The negative space the created by the roofs can let the nature light comes straight into the main theater.

The model with material, the line element of the theater surface and the green roof shows the combination of landscape and theater.

Two elevation of the theater, which can clear see the negative spaces that created by the roof.





The poster











Assignment 2 the concept analysis of Thermal bath

The site plan of thermal bath, that the thermal bath were surrounded by the hotel and visiters can only access to the thermal bath from one entrance which is under ground.

The basic concept of thermal bath that is inspire from a stone with green moss of it.

                                    Then, the basic sharp of thermal bath were designed.

                                            Another character was coherence line.

                                          The concept plan of thermal bath, 25 blocks .

The roof of thermal bath, 16 blocks which cover 25 blocks and each of them leaft a unique garp which can let the natural comes in.

The plan of thermal bath and the access rate of circulation. From yellow to red, which shows a shift from lower to higher.

The number of entrances were related to the purpose of the area. The main bath have 4 entrances while the secondry bath have 3 entrances.

The sketch image of thermal bath,which show the unique of natural and an interest effect it create.

This image shows the different color of thermal bath were ralated to it's function.The changing room were used as red.

Another example of color and the function. The cold bath were used as blue.





The poster













Assignment 1 Site analysis

Sketch book

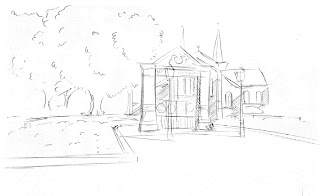

The view along church street

The view along the river

The river side theater

The front facade of church

The diagram of traffic access rate, that the bold lines present as the high access rate.Than is the double line and the single lines were the least access rate.

Figure groud of commercial area. A strong shift from south part of the river to north part of the river.

Another figure groud that shows the green area. A strong contrast from the figure groud above.


Model

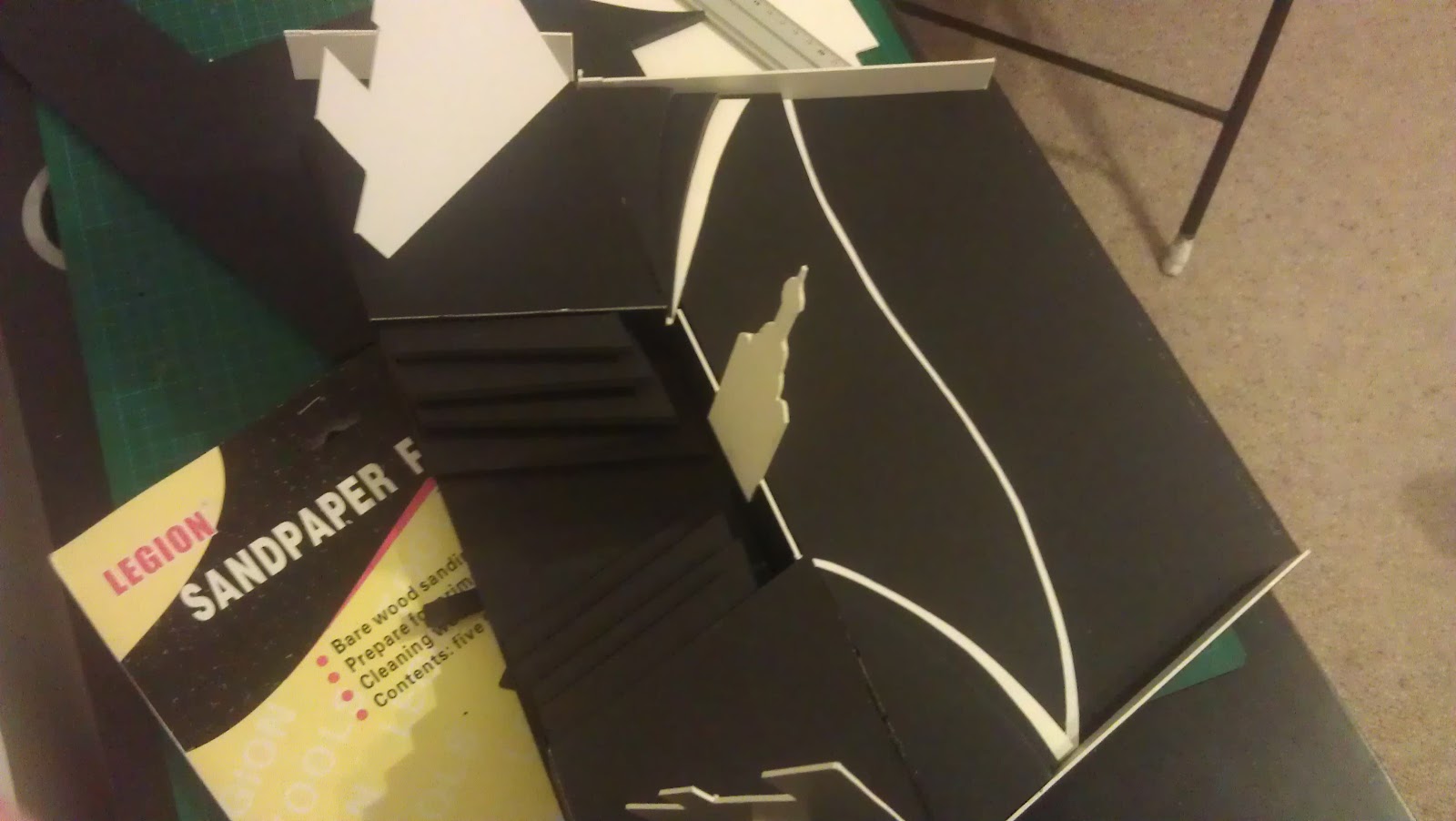

The model of stage, that with the concept of two different elemet gradually come together. It also related to the two different parties  of "western story". The black and white that staggered each other shows the mutual integration natural area and commerial area. Also there are three abstract image of the site of the parramatta.

The back of the stage, two stairs show how different parties of artors come up to the stage.
